Codemaxx Network 4 Door Control Panel W/out Battery Back-up

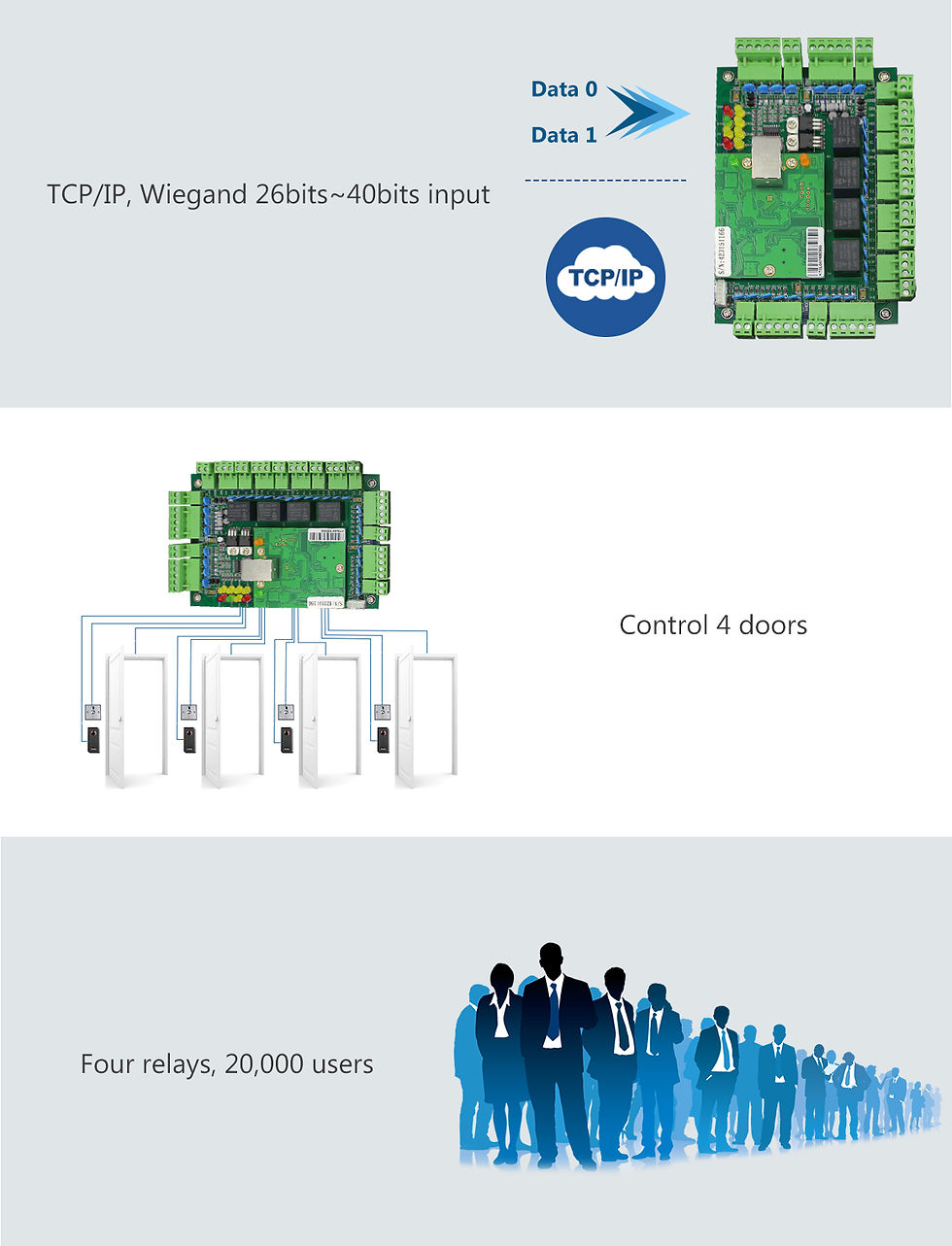

Four-door TCP/IP Controller

  • Four-door TCP/IP controller
  • Wiegand 26bits ~ 40bits input
  • 20,000 users; 100,000 event buffers
  • Time & Attendance reporting


Technology Parameters

AC Input Voltage: AC 110V 50Hz

Output Voltage: DC 12V

Output Electric Current: 4 ~ 7A

Output Power: 60W


  • Communication: TCP/IP
  • English Software supportable database: SQL
  • Description : Control 4 doors, get in by swiping card and get out door by button
  • Power Supply : 12VDC; 4 ~ 7A
  • Input Format of Reader: Wiegand 26bits ~40 bits (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
  • Quantity of Readers: 4 pcs
  • Conventional Function : offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form; report can be exported to excel file; card+password unlocking; alarm for long time unclosing; alarm for invalid card swiping; first card unlocking; alarm for illegal break in; unlocking at definite time; e-map, patrol, meeting, const meal etc.
  • Professional function : for professional users such as bank, cash house, telecom station, power supply station, prison and police station: interface locking; intimidation alarm; integrated fire control; anti-passback and anti-tail; interlocking; multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.

CM-4DC-SM: Codemaxx Network 4 Door Network Access Control Panel W/out Battery
